SSDCN2020K12

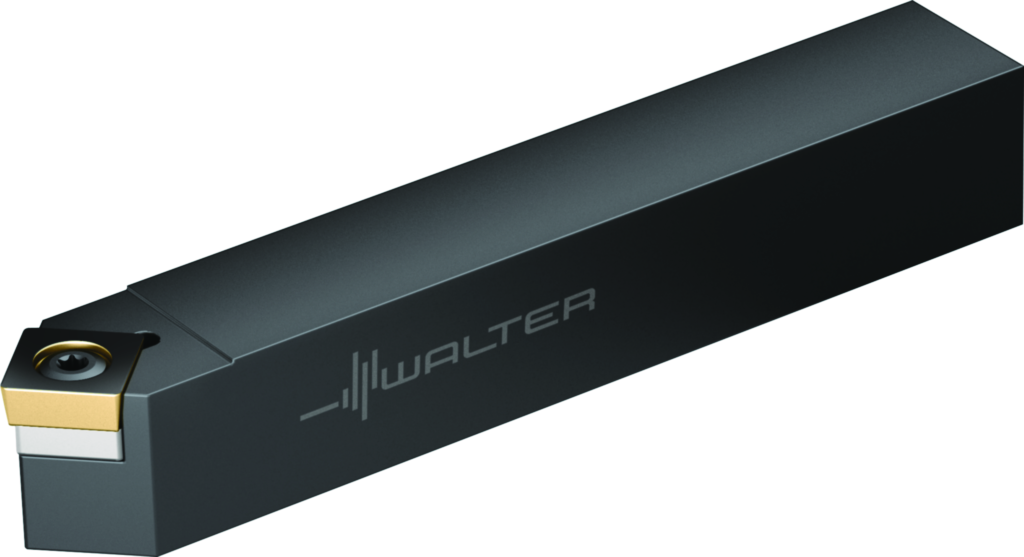

Schaftwerkzeug – Schraubenspannung SSDCN SSDCN2020K12

  • Funktionale Länge l 1 (mm)
  • Spanwinkel orthogonal γ (Deg)
  • Neigungswinkel λ s (Deg)
  • Funktionale Breite f (mm)
  • Maximale Auskraglänge l 4 (mm)
  • Schafthöhe h = h 1 (mm)
  • Schaftbreite b (mm)

100,00 € 100,00 € 100.0 EUR

100,00 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
SSDCN2020K12 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5335848&application=dxf&type=d00&subtype=tt01_00&filename=4417998_d00_0_1~tt01_00.dxf SSDCN2020K12 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5335848&application=stp&type=mod&subtype=tm02_00&filename=4795228_mod_0_1~tm02_00.stp SSDCN2020K12 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5335848&application=stp&type=mod&subtype=tm01_00&filename=4791186_mod_0_1~tm01_00.stp SSDCN2020K12 - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=5335848 SSDCN2020K12 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=d00&number=4417998&version=1&part=0&application=dxf&filename=4417998_d00_0_1~tt01_00.dxf SSDCN2020K12 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=4795228&version=1&part=0&application=stp&filename=4795228_mod_0_1~tm02_00.stp SSDCN2020K12 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=4791186&version=1&part=0&application=stp&filename=4791186_mod_0_1~tm01_00.stp SSDCN2020K12 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5335848&application=dxf&type=d00&subtype=tt01_00&filename=4417998_d00_0_1~tt01_00.dxf SSDCN2020K12 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5335848&application=stp&type=mod&subtype=tm02_00&filename=4795228_mod_0_1~tm02_00.stp SSDCN2020K12 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5335848&application=stp&type=mod&subtype=tm01_00&filename=4791186_mod_0_1~tm01_00.stp

Spezifikationen für SSDCN2020K12

Funktionale Länge l 1 (mm) 125
Spanwinkel orthogonal γ (Deg) 0
Neigungswinkel λ s (Deg) 0
Funktionale Breite f (mm) 10
Maximale Auskraglänge l 4 (mm) 22
Schafthöhe h = h 1 (mm) 20
Schaftbreite b (mm) 20
