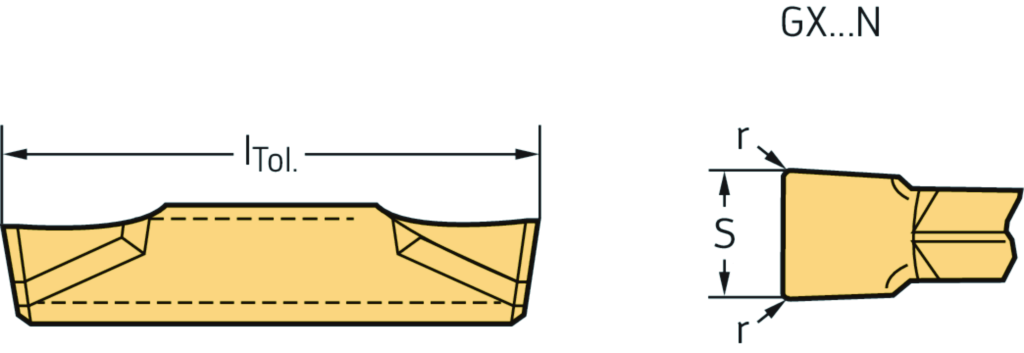

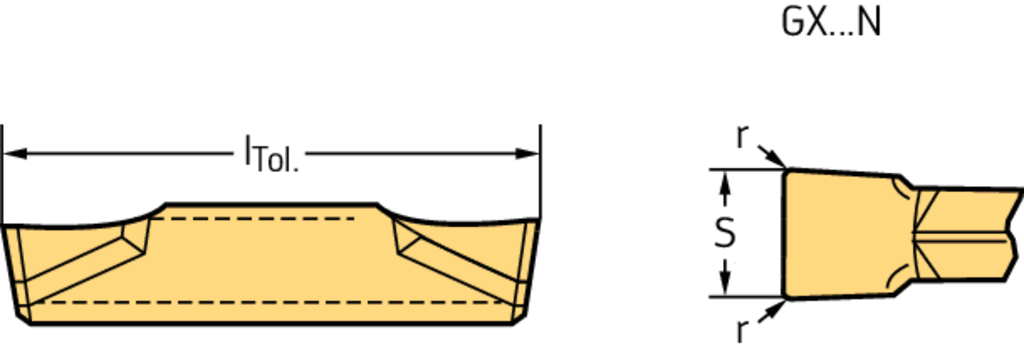

GX24-3E500N04-UF8 WSM23S

• Schneidkantenlänge l (mm) 24
• Eckenradius r (mm) 0,4
• Vorschub pro Umdrehung f (mm) 0,11 - 0,35
• Schnitttiefe a p (mm) 0,6 - 2,6
• Stechbreite s (mm) 5
• Toleranz Stechbreite S Tol (mm) ±0,02
• Längentoleranz l Tol (mm) ±0,03

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen

---
