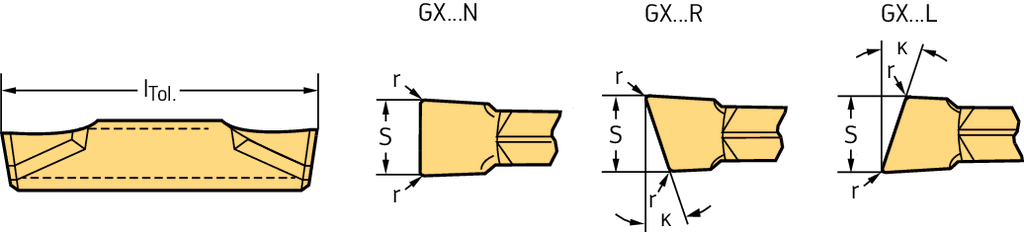

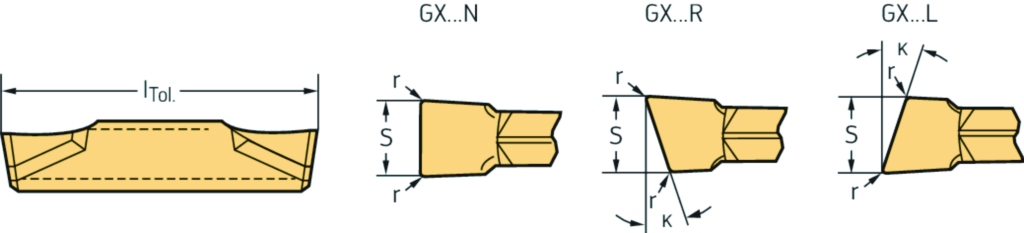

GX24-3E500N04-GD6 WSM23S

• Schneidkantenlänge l (mm) 24
• Eckenradius r (mm) 0,4
• Vorschub pro Umdrehung f (mm) 0,12 - 0,24
• Stechbreite s (mm) 5
• Toleranz Stechbreite S Tol (mm) ±0,05
• Längentoleranz l Tol (mm) ±0,15

Diese Kombination existiert nicht.
