GX24-3E400N03-CE4 WSM33S


Ein- und Abstechen – Schneideinsätze GX24-3E400N03-CE4 WSM33S

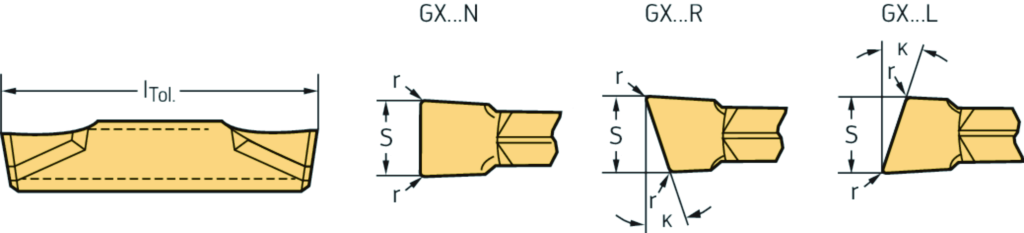

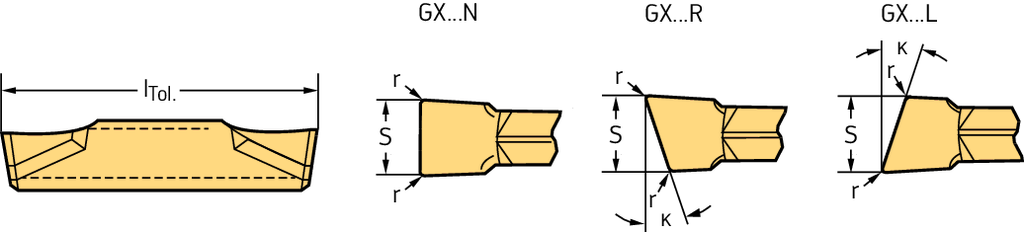

  • Schneidkantenlänge l (mm)
  • Eckenradius r (mm)
  • Vorschub pro Umdrehung f (mm)
  • Stechbreite s (mm)
  • Toleranz Stechbreite S Tol (mm)
  • Längentoleranz l Tol (mm)

26,60 € 26,60 € 26.6 EUR

26,60 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
GX24-3E400N03-CE4 WSM33S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6092252&application=dxf&type=d00&subtype=tt01_00&filename=4807022_d00_0_0~tt01_00.dxf GX24-3E400N03-CE4 WSM33S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6092252&application=stp&type=mod&subtype=tm02_00&filename=5543787_mod_0_0~tm02_00.stp GX24-3E400N03-CE4 WSM33S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6092252&application=stp&type=mod&subtype=tm01_00&filename=5543786_mod_0_0~tm01_00.stp GX24-3E400N03-CE4 WSM33S - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=6092252 GX24-3E400N03-CE4 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6092252&application=dxf&type=d00&subtype=tt01_00&filename=4807022_d00_0_0~tt01_00.dxf GX24-3E400N03-CE4 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6092252&application=stp&type=mod&subtype=tm02_00&filename=5543787_mod_0_0~tm02_00.stp GX24-3E400N03-CE4 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6092252&application=stp&type=mod&subtype=tm01_00&filename=5543786_mod_0_0~tm01_00.stp GX24-3E400N03-CE4 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6092252&application=stp&type=mod&subtype=tm02_00&filename=5543787_mod_0_1~tm02_00.stp GX24-3E400N03-CE4 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6092252&application=stp&type=mod&subtype=tm01_00&filename=5543786_mod_0_1~tm01_00.stp

Spezifikationen für GX24-3E400N03-CE4 WSM33S

Schneidkantenlänge l (mm) 24
Eckenradius r (mm) 0,3
Vorschub pro Umdrehung f (mm) 0,1 - 0,32
Stechbreite s (mm) 4
Toleranz Stechbreite S Tol (mm) ±0,05
Längentoleranz l Tol (mm) ±0,15
