GX24-2E300N02-CF5 WSM43S


Ein- und Abstechen – Schneideinsätze GX24-2E300N02-CF5 WSM43S

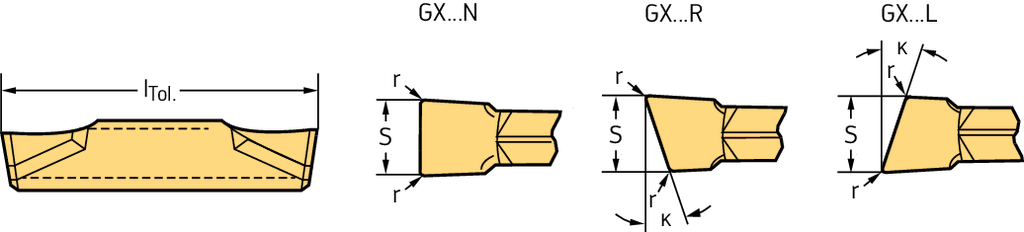

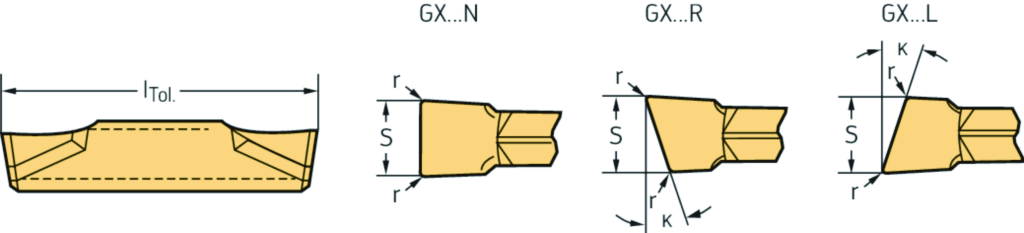

  • Schneidkantenlänge l (mm)
  • Eckenradius r (mm)
  • Vorschub pro Umdrehung f (mm)
  • Stechbreite s (mm)
  • Toleranz Stechbreite S Tol (mm)
  • Längentoleranz l Tol (mm)

24,20 € 24,20 € 24.2 EUR

24,20 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
GX24-2E300N02-CF5 WSM43S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6090584&application=dxf&type=d00&subtype=tt01_00&filename=4806437_d00_0_0~tt01_00.dxf GX24-2E300N02-CF5 WSM43S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6090584&application=stp&type=mod&subtype=tm02_00&filename=5543778_mod_0_0~tm02_00.stp GX24-2E300N02-CF5 WSM43S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6090584&application=stp&type=mod&subtype=tm01_00&filename=5543779_mod_0_0~tm01_00.stp GX24-2E300N02-CF5 WSM43S - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=6090584 GX24-2E300N02-CF5 WSM43S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6090584&application=dxf&type=d00&subtype=tt01_00&filename=4806437_d00_0_0~tt01_00.dxf GX24-2E300N02-CF5 WSM43S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6090584&application=stp&type=mod&subtype=tm02_00&filename=5543778_mod_0_0~tm02_00.stp GX24-2E300N02-CF5 WSM43S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6090584&application=stp&type=mod&subtype=tm01_00&filename=5543779_mod_0_0~tm01_00.stp GX24-2E300N02-CF5 WSM43S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6090584&application=stp&type=mod&subtype=tm02_00&filename=204172121_mod_0_0~tm02_00.stp GX24-2E300N02-CF5 WSM43S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6090584&application=stp&type=mod&subtype=tm01_00&filename=204172122_mod_0_0~tm01_00.stp

Spezifikationen für GX24-2E300N02-CF5 WSM43S

Schneidkantenlänge l (mm) 24
Eckenradius r (mm) 0,2
Vorschub pro Umdrehung f (mm) 0,08 - 0,2
Stechbreite s (mm) 3
Toleranz Stechbreite S Tol (mm) ±0,05
Längentoleranz l Tol (mm) ±0,15
