GX24-2E280R04-VG7 WSM23S

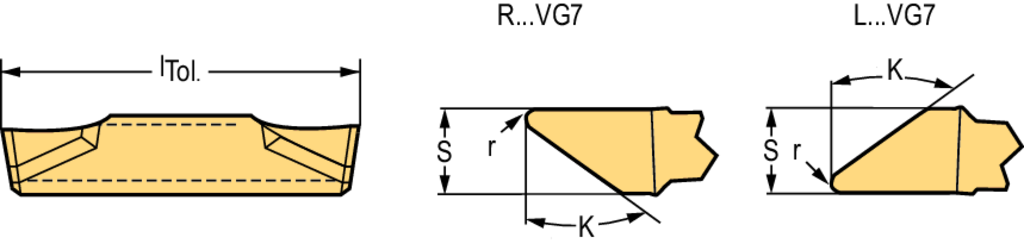

• Schneidkantenlänge l (mm) 24
• Eckenradius r (mm) 0,4
• Vorschub pro Umdrehung f (mm) 0,08 - 0,25
• Schnitttiefe a p (mm) 0,2 - 2,5
• Stechbreite s (mm) 2,8
• Toleranz Stechbreite S Tol (mm) ±0,05
• Längentoleranz l Tol (mm) ±0,15
• Kappa κ (Deg) 50
