GX24-2E280R02-VG7 WSM33S


Einstechen und Stechdrehen – Schneideinsätze GX24-2E280R02-VG7 WSM33S

  • Schneidkantenlänge l (mm)
  • Eckenradius r (mm)
  • Vorschub pro Umdrehung f (mm)
  • Schnitttiefe a p (mm)
  • Stechbreite s (mm)
  • Toleranz Stechbreite S Tol (mm)
  • Längentoleranz l Tol (mm)
  • Kappa κ (Deg)

23,05 € 23,05 € 23.05 EUR

23,05 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
GX24-2E280R02-VG7 WSM33S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=7319545&application=dxf&type=d00&subtype=tt01_00&filename=6387298_d00_0_0~tt01_00.dxf GX24-2E280R02-VG7 WSM33S - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=7319545 GX24-2E280R02-VG7 WSM33S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=7319545&application=stp&type=mod&subtype=tm02_00&filename=203261681_mod_0_0~tm02_00.stp GX24-2E280R02-VG7 WSM33S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=7319545&application=stp&type=mod&subtype=tm01_00&filename=203261680_mod_0_0~tm01_00.stp GX24-2E280R02-VG7 WSM33S - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=d00&number=6387298&version=0&part=0&application=dxf&filename=6387298_d00_0_0~tt01_00.dxf GX24-2E280R02-VG7 WSM33S - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=203261681&version=0&part=0&application=stp&filename=203261681_mod_0_0~tm02_00.stp GX24-2E280R02-VG7 WSM33S - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=203261680&version=0&part=0&application=stp&filename=203261680_mod_0_0~tm01_00.stp GX24-2E280R02-VG7 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=7319545&application=dxf&type=d00&subtype=tt01_00&filename=6387298_d00_0_0~tt01_00.dxf GX24-2E280R02-VG7 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=7319545&application=stp&type=mod&subtype=tm02_00&filename=203261681_mod_0_0~tm02_00.stp GX24-2E280R02-VG7 WSM33S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=7319545&application=stp&type=mod&subtype=tm01_00&filename=203261680_mod_0_0~tm01_00.stp

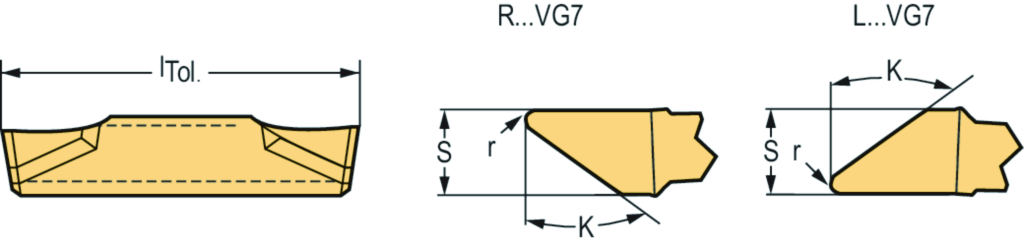

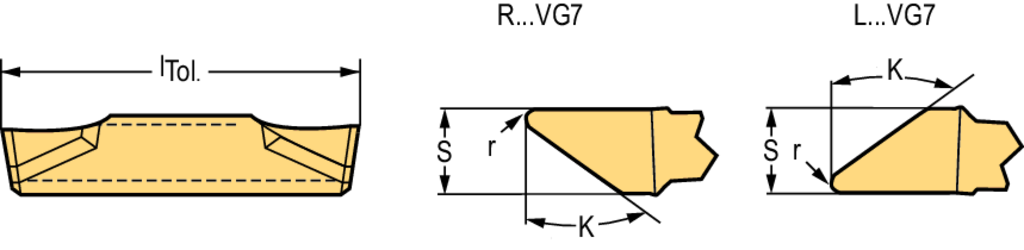

Spezifikationen für GX24-2E280R02-VG7 WSM33S

Schneidkantenlänge l (mm) 24
Eckenradius r (mm) 0,2
Vorschub pro Umdrehung f (mm) 0,05 - 0,12
Schnitttiefe a p (mm) 0,2 - 2
Stechbreite s (mm) 2,8
Toleranz Stechbreite S Tol (mm) ±0,05
Längentoleranz l Tol (mm) ±0,15
Kappa κ (Deg) 50
