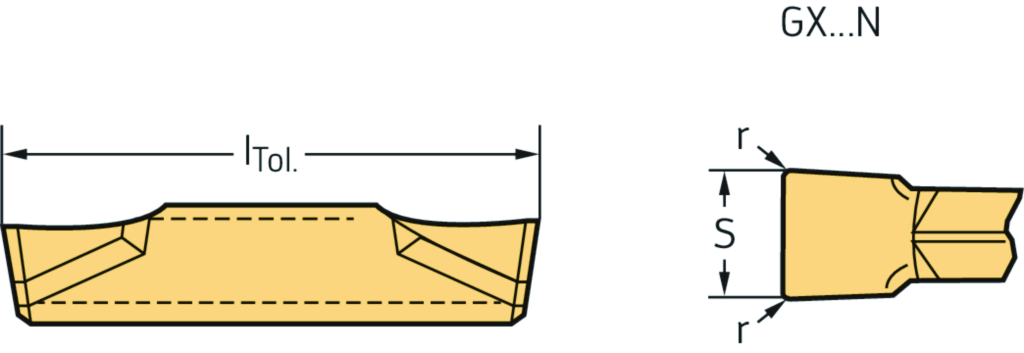

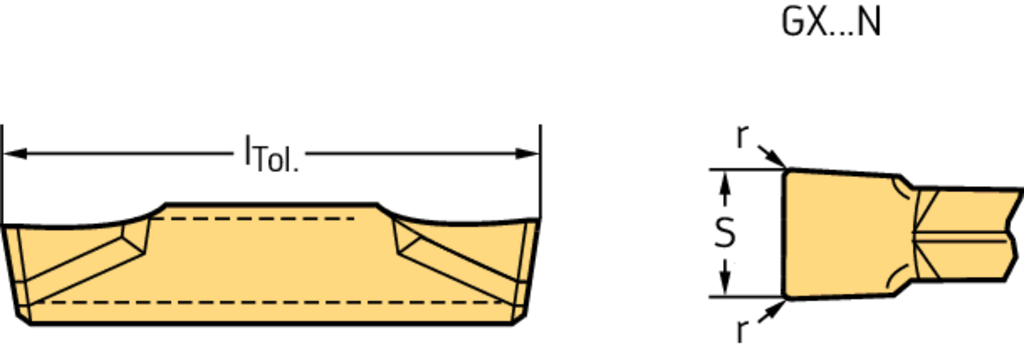

GX16-3E400N04-UF8 WSM23S

• Schneidkantenlänge l (mm) 16
• Eckenradius r (mm) 0,4
• Vorschub pro Umdrehung f (mm) 0,09 - 0,3
• Schnitttiefe a p (mm) 0,9 - 2,2
• Stechbreite s (mm) 4
• Toleranz Stechbreite S Tol (mm) ±0,02
• Längentoleranz l Tol (mm) ±0,03

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen

---
