GX16-2E300N03-UF4 WKP23S


Einstechen und Stechdrehen – Schneideinsätze GX16-2E300N03-UF4 WKP23S

  • Schneidkantenlänge l (mm)
  • Eckenradius r (mm)
  • Vorschub pro Umdrehung f (mm)
  • Schnitttiefe a p (mm)
  • Stechbreite s (mm)
  • Toleranz Stechbreite S Tol (mm)
  • Längentoleranz l Tol (mm)

21,99 € 21,99 € 21.990000000000002 EUR

21,99 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
GX16-2E300N03-UF4 WKP23S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6529417&application=dxf&type=d00&subtype=tt01_00&filename=2096079_d00_0_0~tt01_00.dxf GX16-2E300N03-UF4 WKP23S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6529417&application=stp&type=mod&subtype=tm02_00&filename=5543551_mod_0_1~tm02_00.stp GX16-2E300N03-UF4 WKP23S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6529417&application=stp&type=mod&subtype=tm01_00&filename=5543537_mod_0_1~tm01_00.stp GX16-2E300N03-UF4 WKP23S - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=6529417 GX16-2E300N03-UF4 WKP23S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6529417&application=dxf&type=d00&subtype=tt01_00&filename=2096079_d00_0_0~tt01_00.dxf GX16-2E300N03-UF4 WKP23S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6529417&application=stp&type=mod&subtype=tm02_00&filename=5543551_mod_0_1~tm02_00.stp GX16-2E300N03-UF4 WKP23S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6529417&application=stp&type=mod&subtype=tm01_00&filename=5543537_mod_0_1~tm01_00.stp

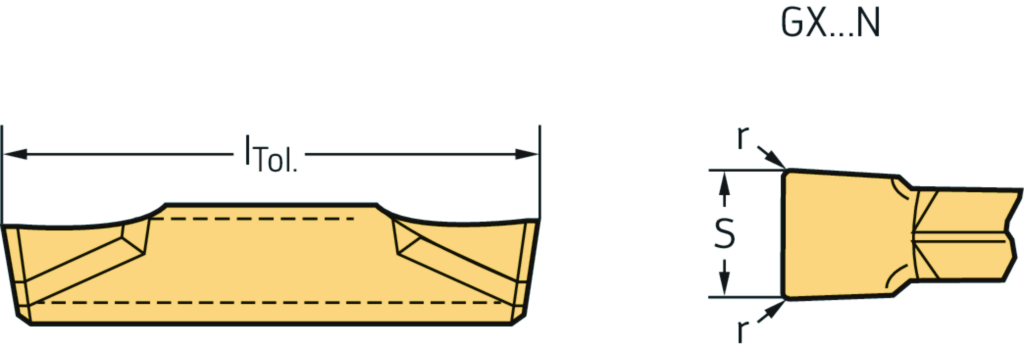

Spezifikationen für GX16-2E300N03-UF4 WKP23S

Schneidkantenlänge l (mm) 16
Eckenradius r (mm) 0,3
Vorschub pro Umdrehung f (mm) 0,1 - 0,2
Schnitttiefe a p (mm) 0,4 - 2
Stechbreite s (mm) 3
Toleranz Stechbreite S Tol (mm) ±0,05
Längentoleranz l Tol (mm) ±0,15
