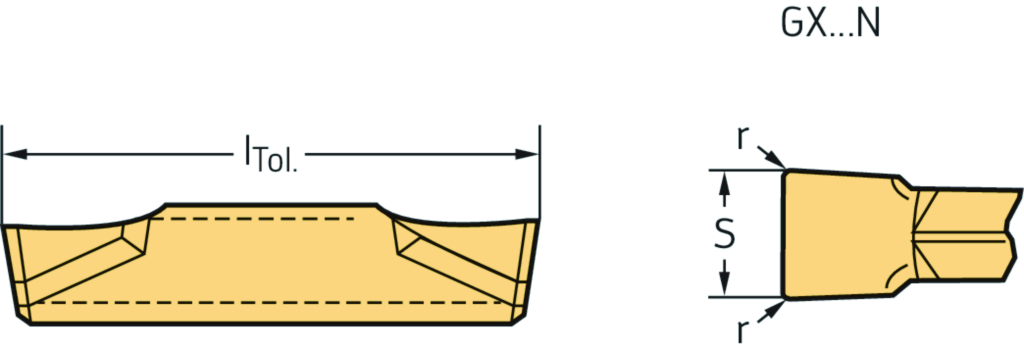

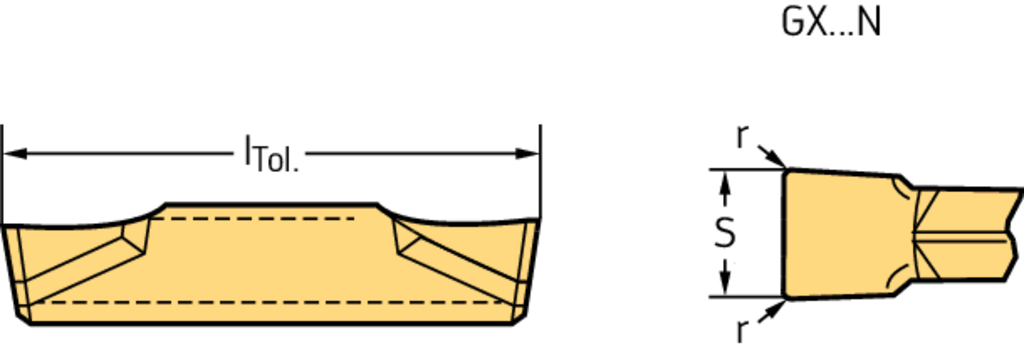

GX16-2E300N03-UA4 WKP33S

• Schneidkantenlänge l (mm) 16
• Eckenradius r (mm) 0,3
• Vorschub pro Umdrehung f (mm) 0,1 - 0,22
• Schnitttiefe a p (mm) 0,4 - 2
• Stechbreite s (mm) 3
• Toleranz Stechbreite S Tol (mm) ±0,05
• Längentoleranz l Tol (mm) ±0,15

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen

---
