GX16-2E140L00-GD8 WSM23S

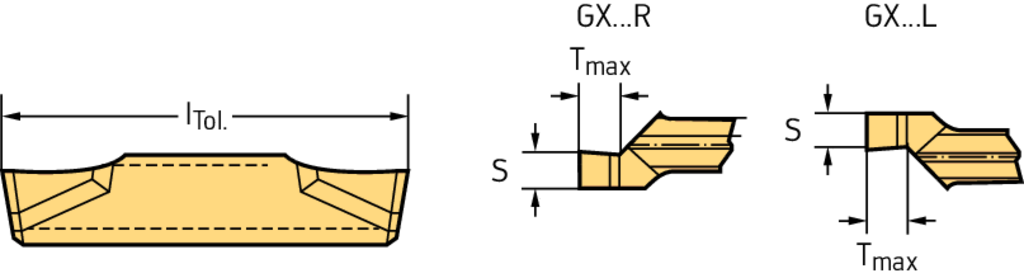

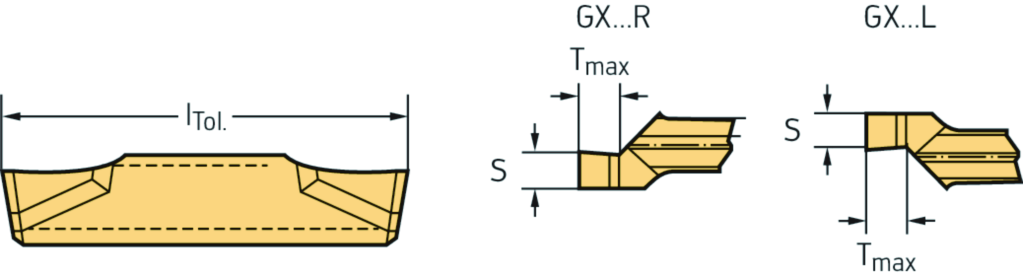

• Schneidkantenlänge l (mm) 16
• Eckenradius r (mm) 0
• Vorschub pro Umdrehung f (mm) 0,05 - 0,1
• Stechbreite s (mm) 1,4
• Toleranz Stechbreite S Tol (mm) ±0,02
• Längentoleranz l Tol (mm) ±0,02
• Maximale Stechtiefe T max (mm) 1,53

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen

---
