GX16-1E200N10-RF8 WSM13S


Einstechen und Kopierdrehen – Schneideinsätze GX16-1E200N10-RF8 WSM13S

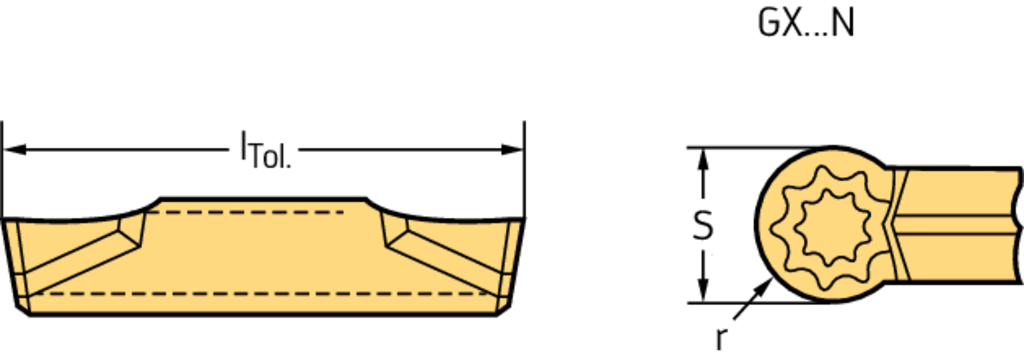

  • Schneidkantenlänge l (mm)
  • Eckenradius r (mm)
  • Vorschub pro Umdrehung f (mm)
  • Schnitttiefe a p (mm)
  • Stechbreite s (mm)
  • Toleranz Stechbreite S Tol (mm)
  • Längentoleranz l Tol (mm)

27,20 € 27,20 € 27.2 EUR

27,20 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
GX16-1E200N10-RF8 WSM13S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6774758&application=dxf&type=d00&subtype=tt01_00&filename=5785453_d00_0_0~tt01_00.dxf GX16-1E200N10-RF8 WSM13S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6774758&application=stp&type=mod&subtype=tm02_00&filename=5543799_mod_0_0~tm02_00.stp GX16-1E200N10-RF8 WSM13S - http://oc.walter-tools.com/sap/bc/zgetpict2?material=6774758&application=stp&type=mod&subtype=tm01_00&filename=5543798_mod_0_0~tm01_00.stp GX16-1E200N10-RF8 WSM13S - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=6774758 GX16-1E200N10-RF8 WSM13S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6774758&application=dxf&type=d00&subtype=tt01_00&filename=5785453_d00_0_0~tt01_00.dxf GX16-1E200N10-RF8 WSM13S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6774758&application=stp&type=mod&subtype=tm02_00&filename=5543799_mod_0_0~tm02_00.stp GX16-1E200N10-RF8 WSM13S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6774758&application=stp&type=mod&subtype=tm01_00&filename=5543798_mod_0_0~tm01_00.stp GX16-1E200N10-RF8 WSM13S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6774758&application=stp&type=mod&subtype=tm02_00&filename=5543799_mod_0_1~tm02_00.stp GX16-1E200N10-RF8 WSM13S - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=6774758&application=stp&type=mod&subtype=tm01_00&filename=5543798_mod_0_1~tm01_00.stp

Spezifikationen für GX16-1E200N10-RF8 WSM13S

Schneidkantenlänge l (mm) 16
Eckenradius r (mm) 1
Vorschub pro Umdrehung f (mm) 0,08 - 0,25
Schnitttiefe a p (mm) 0,1 - 1
Stechbreite s (mm) 2
Toleranz Stechbreite S Tol (mm) ±0,05
Längentoleranz l Tol (mm) ±0,05
