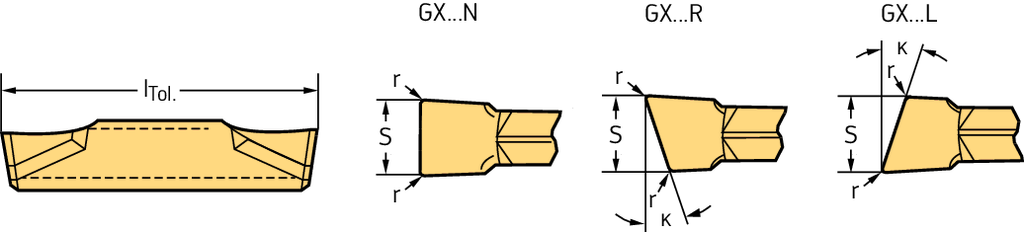

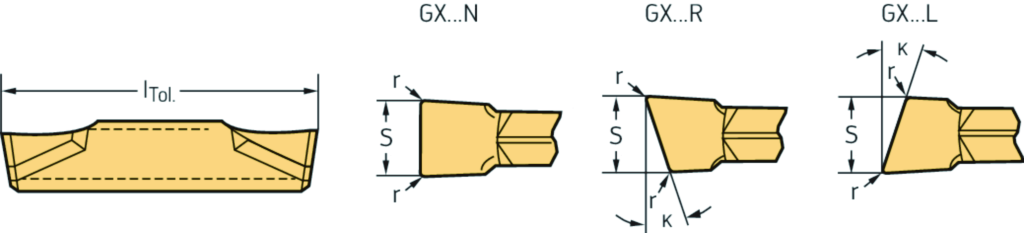

GX16-1E200N02-GD6 WSM23S

• Schneidkantenlänge l (mm) 16
• Eckenradius r (mm) 0,2
• Vorschub pro Umdrehung f (mm) 0,04 - 0,12
• Stechbreite s (mm) 2
• Toleranz Stechbreite S Tol (mm) ±0,05
• Längentoleranz l Tol (mm) ±0,15

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen

---
