DCBNL3225P12

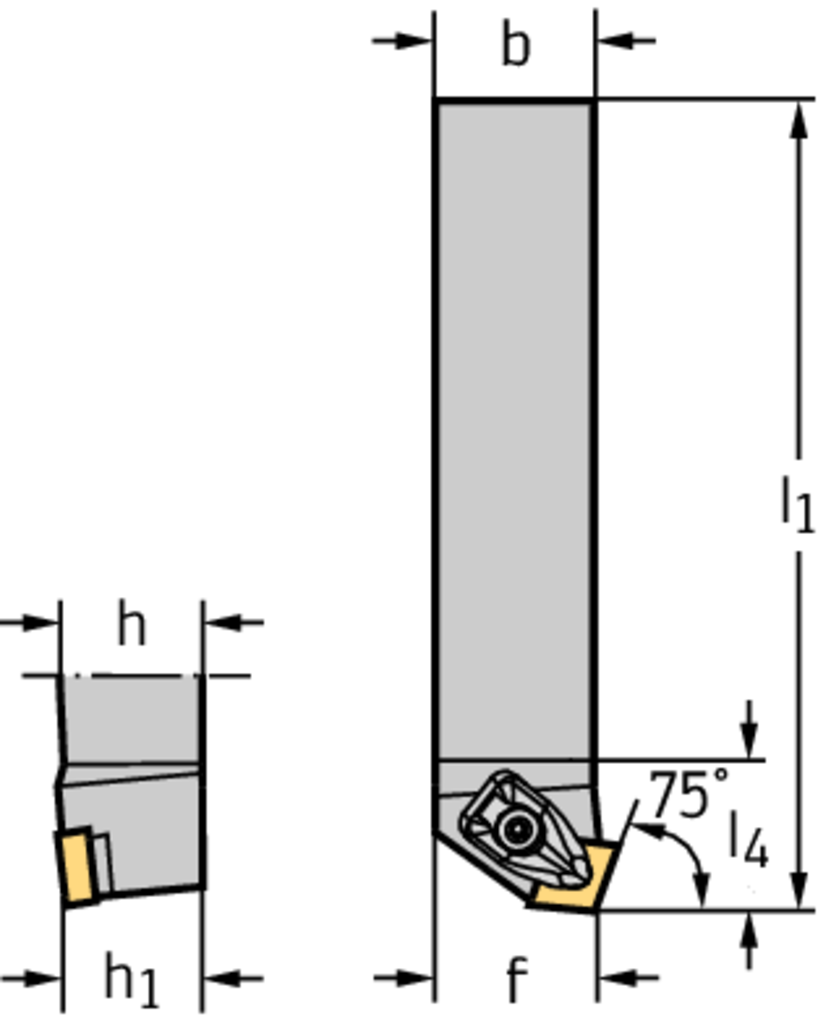

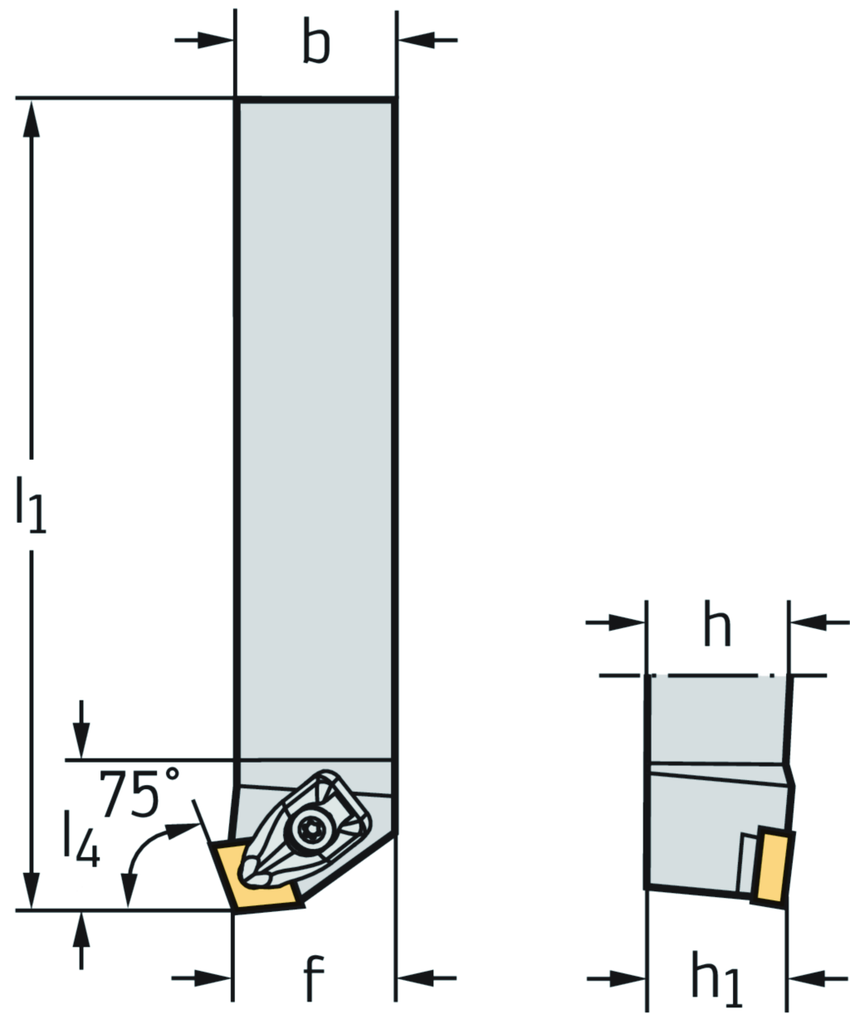

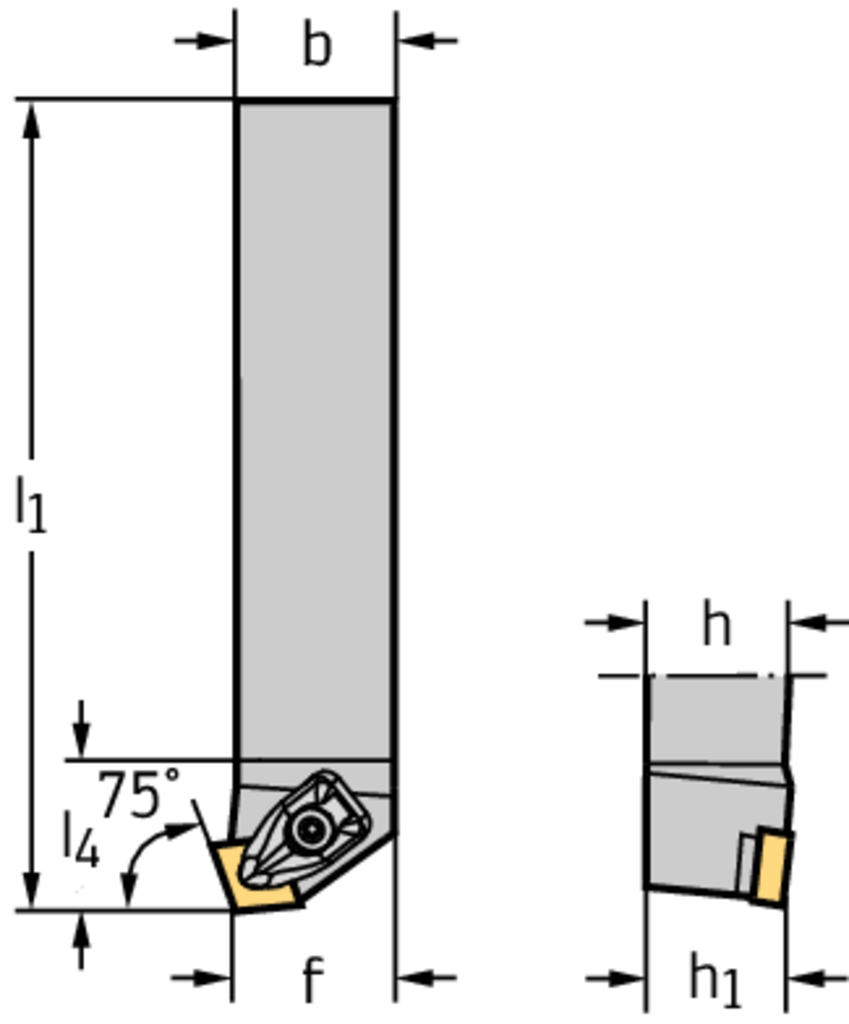

Schaftwerkzeug – Pratzenspannung DCBNL3225P12

  • Funktionale Länge l 1 (mm)
  • Spanwinkel orthogonal γ (Deg)
  • Neigungswinkel λ s (Deg)
  • Funktionale Breite f (mm)
  • Maximale Auskraglänge l 4 (mm)
  • Schafthöhe h = h 1 (mm)
  • Schaftbreite b (mm)

99,70 € 99,70 € 99.7 EUR

99,70 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
DCBNL3225P12 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5673871&application=dxf&type=d00&subtype=tt01_00&filename=4469501_d00_0_1~tt01_00.dxf DCBNL3225P12 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5673871&application=stp&type=mod&subtype=tm02_00&filename=4795649_mod_0_1~tm02_00.stp DCBNL3225P12 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5673871&application=stp&type=mod&subtype=tm01_00&filename=4791512_mod_0_1~tm01_00.stp DCBNL3225P12 - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=5673871 DCBNL3225P12 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=d00&number=4469501&version=1&part=0&application=dxf&filename=4469501_d00_0_1~tt01_00.dxf DCBNL3225P12 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=4795649&version=1&part=0&application=stp&filename=4795649_mod_0_1~tm02_00.stp DCBNL3225P12 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=4791512&version=1&part=0&application=stp&filename=4791512_mod_0_1~tm01_00.stp DCBNL3225P12 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5673871&application=dxf&type=d00&subtype=tt01_00&filename=4469501_d00_0_1~tt01_00.dxf DCBNL3225P12 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5673871&application=stp&type=mod&subtype=tm02_00&filename=4795649_mod_0_1~tm02_00.stp DCBNL3225P12 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5673871&application=stp&type=mod&subtype=tm01_00&filename=4791512_mod_0_1~tm01_00.stp

Spezifikationen für DCBNL3225P12

Funktionale Länge l 1 (mm) 170
Spanwinkel orthogonal γ (Deg) -6
Neigungswinkel λ s (Deg) -6
Funktionale Breite f (mm) 22
Maximale Auskraglänge l 4 (mm) 34,6
Schafthöhe h = h 1 (mm) 32
Schaftbreite b (mm) 25
