DCBNL2525M16

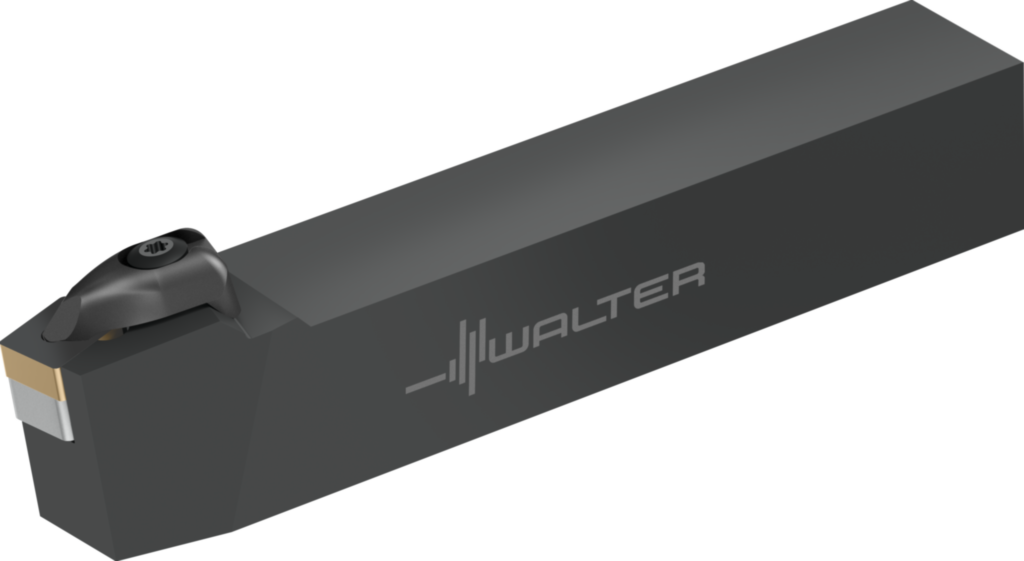

Schaftwerkzeug – Pratzenspannung DCBNL2525M16

  • Funktionale Länge l 1 (mm)
  • Spanwinkel orthogonal γ (Deg)
  • Neigungswinkel λ s (Deg)
  • Funktionale Breite f (mm)
  • Maximale Auskraglänge l 4 (mm)
  • Schafthöhe h = h 1 (mm)
  • Schaftbreite b (mm)

90,40 € 90,40 € 90.4 EUR

90,40 €

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen
Verwandte Documente:
DCBNL2525M16 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5673874&application=dxf&type=d00&subtype=tt01_00&filename=4469509_d00_0_1~tt01_00.dxf DCBNL2525M16 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5673874&application=stp&type=mod&subtype=tm02_00&filename=4795651_mod_0_1~tm02_00.stp DCBNL2525M16 - http://oc.walter-tools.com/sap/bc/zgetpict2?material=5673874&application=stp&type=mod&subtype=tm01_00&filename=4791514_mod_0_1~tm01_00.stp DCBNL2525M16 - https://www.walter-tools.com/de-de/search/pages/default.aspx#?k=5673874 DCBNL2525M16 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=d00&number=4469509&version=1&part=0&application=dxf&filename=4469509_d00_0_1~tt01_00.dxf DCBNL2525M16 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=4795651&version=1&part=0&application=stp&filename=4795651_mod_0_1~tm02_00.stp DCBNL2525M16 - http://ww2.walter-ag.de:80/sap/bc/zz_get_file?type=mod&number=4791514&version=1&part=0&application=stp&filename=4791514_mod_0_1~tm01_00.stp DCBNL2525M16 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5673874&application=dxf&type=d00&subtype=tt01_00&filename=4469509_d00_0_1~tt01_00.dxf DCBNL2525M16 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5673874&application=stp&type=mod&subtype=tm02_00&filename=4795651_mod_0_1~tm02_00.stp DCBNL2525M16 - https://oc.walter-tools.com:60340/sap/bc/zgetpict2?material=5673874&application=stp&type=mod&subtype=tm01_00&filename=4791514_mod_0_1~tm01_00.stp

Spezifikationen für DCBNL2525M16

Funktionale Länge l 1 (mm) 150
Spanwinkel orthogonal γ (Deg) -6
Neigungswinkel λ s (Deg) -6
Funktionale Breite f (mm) 22
Maximale Auskraglänge l 4 (mm) 41,5
Schafthöhe h = h 1 (mm) 25
Schaftbreite b (mm) 25
